| FEIPU NO.: | AX-5006 | ||
| ARMATURE | OEM: | ||

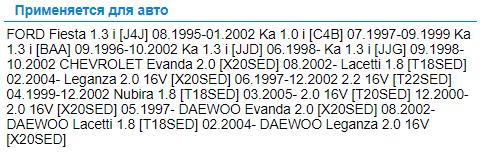

| 61-9130 IM2113 1004011046 1004011063 1004011307 23310-1F705 | |||
| 1004011058 | 1004011097 | ||
|
137069 28160-02080 23310-99B00 23310-99B05 |
|||

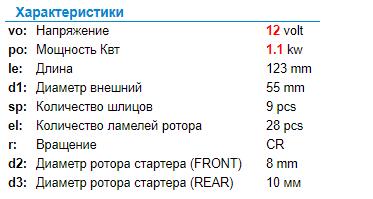

| Voltage: | 12V | ||
| Length: | 123 | ||
| Shaft OD,Front Bushing | 7.89 | ||
| Shaft OD,Rear Bushing | 9.93 | ||
| Core Diameter: | 55 | ||
| No of Splines: | 9 | ||
| Commutator Segments: | 28 | ||
| FOR STARTER: | Bosch 107 Series PMGR Starters | ||
| BRUSH HOLDER | AX-18003（69-9121） | ||
| SOLENOID | AX-7115 | ||
| STARTER DRIVE | AX-16012 | ||
| STATIONARY GEAR | AX-3005 | ||
| SHIFT LEVER | AX-2001 | ||
